Wiring Diagram For Rearview Mirror Toyota Tundra Discussion Forum
Of course white w black stripe is ground.
Tundra rear view mirror wiring diagram. Power Windows Page A-2 3. You need to start a new thread asking for the 07-09 10 pin wiring diagram. W1 is the black connector to the wiring that goes into the mirror.
Rear View Mirror Wire ID. Clip one end to pin at rear harness on frame other end to one meter prob then carefully put end of paper clip in mirror harness and touch the second prob from meter to the paper clip. Inspect the outer rear view mirror indicator LH on the outer rear view mirror sub-assembly LH.
Discussion Starter 1 Dec 21 2017. Improves nighttime driving safety. Im assuming that these wires would have been used for an LED backup camera screen andor power supply to a rear view mirror had I purchased a Tundra with that options package.
Just study the 14 pin diagram in that link I gave you and compare it to the 10 pin from earlier trucks. Im sure i can just get them from another car in a junk yard. The fuses are designed to blow before the entire wiring harness is damaged.
Over the years Toyota has done a wonderful job of installing the Tundra camera wiring at the factory. Sky blue wire is ACC powered. Here you can see the wires going into the t-junction just above the mirror.
If this happens check and replace the fuses as necessary. Clock Cig Lighter Page A-5 6. In fact up until 2011 our plug and play camera kit would seamlessly connect to the Tundra camera wiring harness with ease.
Front Wiper Washer Page A-6 7. The auto-dimming function can be manually deselected by pushing a switch on the inside mirror. Tacomas 2016 started by Col4bin May 4 2018.
CAUTION NOTICE HINT. Its plugged in the slot in the back of the mirror. Trying to wire my radar detector into the 14pin on the back of the mirror and cannot seem to find a wiring diagram after exhaustively searching.
Where else can I check to make sure other places a. 2012-2014 Tundra Camera Wiring. Note the black tape is mine just to keep them separate.
So does anyone know of. There ARE 2 bundles of wires that are capped off. Toyota Tundra Service Manual.

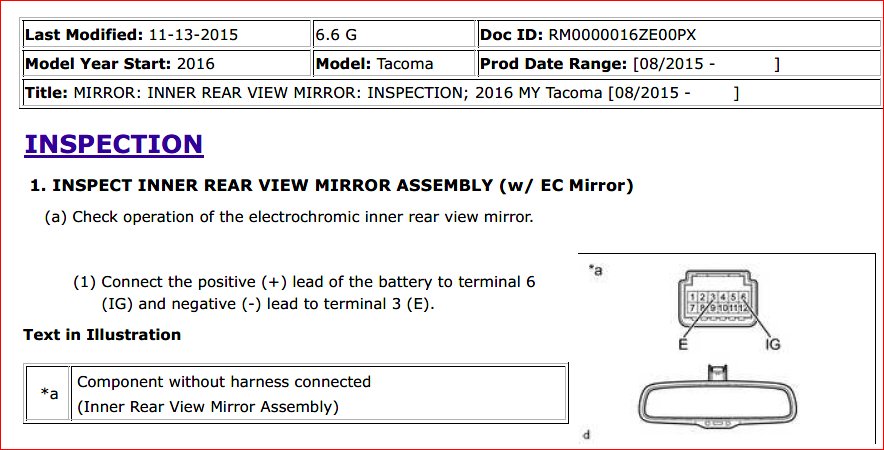

My 2014 is 14 pin the wiring diagram I used is 2015. This mirror includes LCD auto. In case anyone needs this heres the Gentex rearview mirror wiring diagram that i just assembled from a Toyota Tundra.
Gentex Mirror Wiring Diagram. Provides automatic progressive dimming of the inside mirror reducing the glare caused by the headlights of vehicles in the rear view. I have a 2010 sequoia platinum.
