Pir 8 Wiring Diagram

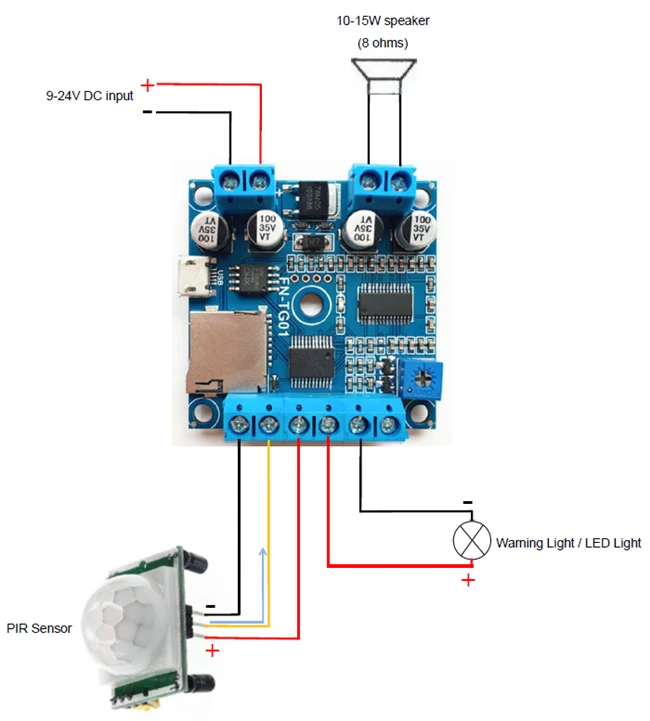

Please do the above shown wiring across all the PIR modules and then connect the shown 123 points together in parallel. Hafele makes a power supply this power supply has a special port where you plug in your Hafele sensor.

Pir 8 Wiring Diagram - If you're looking for picture and video information related to the keyword you have come to visit the right blog. Our site provides you with hints for viewing the highest quality video and image content, hunt and find more enlightening video articles and graphics that fit your interests. includes one of tens of thousands of video collections from various sources, particularly Youtube, so we recommend this movie that you view. This site is for them to stop by this website.

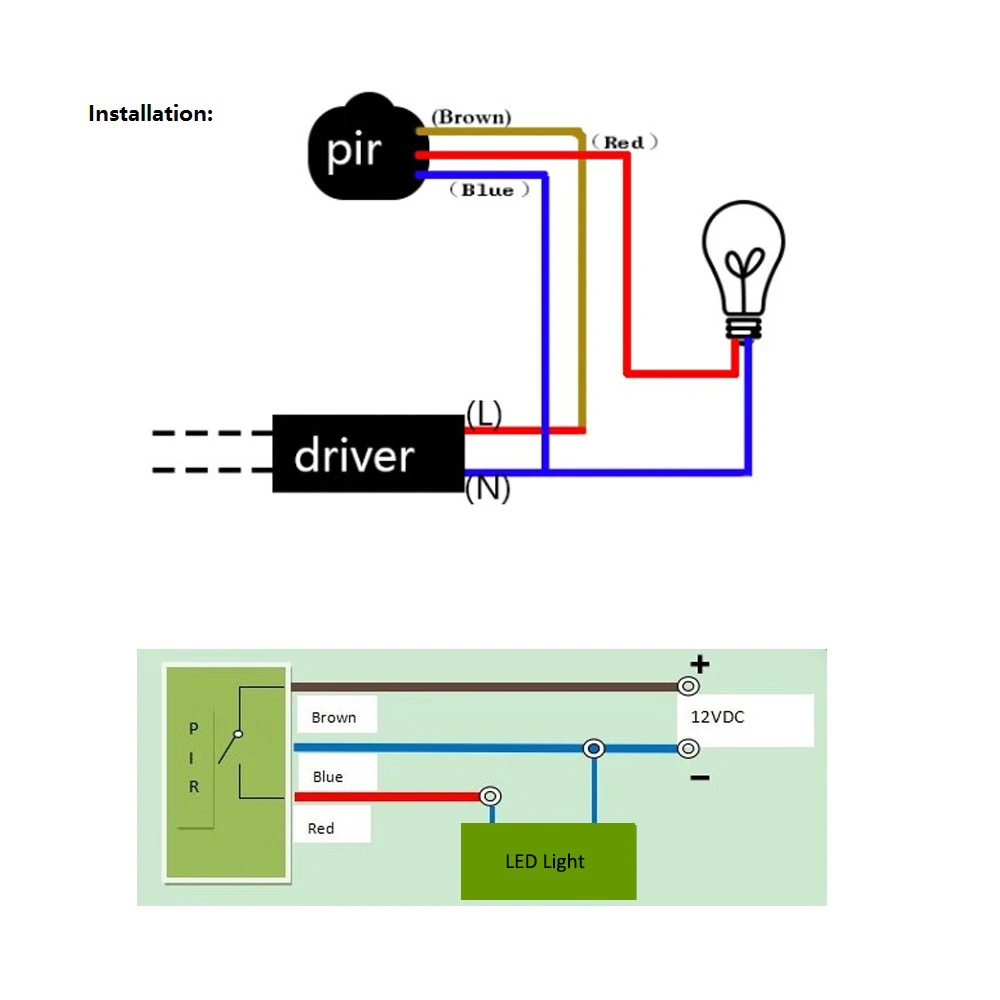

Motion Sensor 220 V 110 V Dc 12 V Pir Sensor Gerak Saklar Otomatis Inframerah Tubuh Lampu Cahaya Timer Beralih Luar Switch Automatic Lamp Switchlight Sensor Switch Outdoor Aliexpress

Please note the PIR should be carefully adjusted when considering ambient light levels.

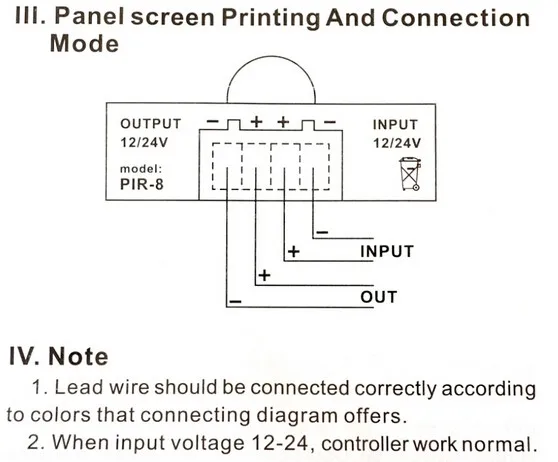

Pir 8 wiring diagram. Diagrams Wiring Security Light Sensor Wiring Diagram. Designed for warehouses and storage aisles with a narrow point of access. Adjust lux level to the desired setting.

Terminal common end associated with the 1k will go to the positive supply 12V the 2. Rotate lux level adjustment to the for initialisation 6. A wiring diagram usually gives assistance practically the relative incline and contract of devices and terminals on the devices to back up in building or servicing the device.

Connect live in switch live out and neutral connection. Pin1 Pin2 and Pin3 are corresponded to drain source and Ground terminal of the device. Hi there I am in the process of installing a Texecom Premier 24 and using texecom PIRs.

Matt looks at the basic wiring diagram for a circuit controlled by a Passive infrared sensor PIR. Installing A Remote Motion Detector For Lighting The. Without override switches is preferred as there is no settling periodClipsal - R - Motion Infrared Sensor Sensor 10A 3 Wire Flush Mount White ElectricClipsal Motion and Occupancy Sensors - Clipsal by Schneider Electric.

He looks at the working principles for controlling a circ. Have read lots about end-of-line resistors etc. Apply mains power to unit.

A wiring diagram usually gives recommendation more or less the relative turn and pact of devices and terminals on the devices to assist in building or servicing the device. What I want to do is wire a PIR to control a light but also run wiring to a socket so that in the future if I want to remove the PIR the wiring is in place ready to control the lights again. It has another set of ports looks like 1-6 where you plug led strip.

Think the wire colours are to suit whoever installed it so you might need to go back to the control panel. I am planning to use 6 cores have run 8 core cable and wire direct back to terminalis there a problem with that. Motion Sensor Flood Light Wiring Diagram Circuit And.

But not sure of the benefits. This is the initialisation time. Voltage supply 12 volts.

Slimj 22 Sep 2016 1. Half Lantern Asd Lighting Plc. Asd Half Lantern Ip44 Polycarbonate 60w Bc Black Pir.

Half Lantern Asd Lighting Plc. The PIR will flash for 2-3 mins. Re-attach the wiring box cover ensuring a weatherproof seal is obtained.

Asd White Bc Pir Master Half Lantern Wall Light Included 60w Security Lights Fix Com. From the installation pdf for the motion sensor that you provided you have following choices of power supplies. Pir Light Wiring Diagram Life Style By Modernstork Com.

Diagrams Motion Sensor Light Wiring Diagram. CEFL PIR LR optional manual wall switch for overriding off 230 VAC alternative position for optional wall switch see p8 Start-up Mode N Wiring diagrams With a long range narrow detection beam. NEUTRAL Blue N EARTH GreenYellow LIVE White L Ensure that all connections are secure.

This is called non-retriggering Or Non-repeatable trigger and jumper said to be in L position. ZV810 Instructions Spreads Farnell Element14. Diode common end connections will go to the drive circuit input and the 3.

In this position LED will blink continuously until there is motion. Wiring diagram 1a. In the wiring diagram on A there is a line connecting it with N with a bulb icon.

If the ceiling mount option is utilised ensure the PIR head is rotated through 180º so that the adjustment controls are in a downward facing orientation. Now when we find the LED blinking whenever there is any motion look back of the PIR you will find a jumper which is placed between outer corner PIN and middle PIN see diagram above. L Red.

CEFL PIR LR is also suitable for building into luminaires. The above configuration seems to have worked in that the light comes on with motion goes off after a period of time but then it comes onoff repeatedly without motion too. The passive infrared sensor consists of three pins as shown below.

If you have two in series then the NC contact and Tamp must also be wired in series the - will be in parallel. In this video you will see how to wire pir sensor light in the ukit will also show you internal wiring of pir sensor and light. Go through the given diagram of the PIR sensor to understand its pin-outs and arrangement in the circuit.

Asd Half Lantern Pir Wiring Diagram Coach Polycarbonate 100w Bc White In This Circuit Passive Infrared Sensor Is Which As Motion Detector. Terminal common ends will join with the negative line of the supply. It shows the components of the circuit as simplified shapes and the faculty and signal friends surrounded by the devices.

Hi Please can someone share a wiring diagram for wiring a PIR to control a light.
